8 February 2021

Talkyard on k8s

Updates

2023-03-12 Added notice about archiving talkyards-k8s repo as I am no longer using Talkyard (or for that matter any commenting solution). The content of this post might be outdated.

Talkyard is an open source software that provides discussion and commenting capabilities to sites. ~~For example the comments on this very site are powered by Talkyard.~~

As the official Talkyard releases already comes containerized and works well as a Docker Compose deployment I figured it would be a fun project to make Talkyard run on k8s. This post will be a step-by-step guide on how to deploy Talkyard to a Kubernetes cluster.

If you couldn’t care less about k8s there’s already instructions on how to install Talkyard with Docker Compose over at the official Talkyard git repository debiki/talkyard-prod-one. Talkyard is also available as Software as a Service if self-hosting is not an option, see talkyard.io/plans.

Talkyard-k8s Repository
Prerequisites
- Sizing
Workspace Setup
Talkyard Configuration
- play-framework.conf
- Secrets
Persistent Storage
- Example Database Storage
Update kustomization.yaml
Deploy to Cluster
Access Talkyard on localhost
Configuring Ingress

Talkyard-k8s Repository

I have setup a GitHub repository, ChrisEke/talkyard-k8s, ~~which I intend to keep up-to-date with new Talkyard releases.~~

Edit: Well, that did not really pan out. The repo has now been archived due to lack of maintenance from my part as I am no longer using Talkyard and unable to stay up to date with the latest features.

For those already familiar with k8s there are suggested quickstart instructions in the README. The remainder of this post will cover a deployment in more detail.

Prerequisites

To follow along the following is needed:

kubectl
a Kubernetes Cluster with amd64 worker node(s). Unfortunately the container images are not yet arm/arm64 compatible.
Kustomize (kubectl v1.14 and upwards includes Kustomize with the --kustomize/-k-flag, but frozen to version v2.0.3. My recommendation is a stand alone installation of the latest version as there are a good deal of new features and improvements in later versions.)

Sizing

This deployment is by default configured with minimal resource requirements. With all the different services combined 1.5GiB memory should be enough for a smaller community with limited concurrent updates.

The most memory intensive services are app and search, which both are Java Runtime based applications. Pre-configured values for Java Heap size are app=256MiB & search=192MiB.

To modify these values the easiest approach is to update the environment variable, either as patch or with Kustomize ConfigMapGenerator.

Kustomize example:

configMapGenerator:
  - name: app-environment-vars
    behavior: merge
    namespace: talkyard
    literals:
      - PLAY_HEAP_MEMORY_MB="512"

  - name: search-environment-vars
    behavior: merge
    namespace: talkyard
    literals:
      - ES_JAVA_OPTS="-Xms384m -Xmx384m"

Workspace Setup

Create workspace directory called talkyard:

mkdir talkyard && cd talkyard

Create the initial kustomization.yaml file which will reference GitHub repository ChrisEke/talkyard-k8s as source for all base manifests.

?ref=v0.2021.02-879ef3fe1 specifies which Talkyard version to deploy and can also be omitted completely to use the latest stable version.

cat << EOF > kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

namespace: talkyard

resources:
- github.com/ChrisEke/talkyard-k8s?ref=v0.2021.02-879ef3fe1
EOF

Optionally we can now perform a dry-run to see the manifests of resources that will be deployed.

This will correspond to the manifests located in ChrisEke/talkyard-k8s/tree/v0.2021.02-879ef3fe1/manifests

kustomize build ./

Which should fill up the terminal with a lot of kubernetes manifest specifications, example:

---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app.kubernetes.io/component: webserver
    app.kubernetes.io/part-of: talkyard
    app.kubernetes.io/version: v0.2021.02-879ef3fe1
  name: web
  namespace: talkyard

Create the talkyard namespace in the cluster:

kubectl create namespace talkyard

Talkyard Configuration

Most of the application specific configuration is done in file play-framework.conf.

An up to date template can be found in repository debiki/talkyard-prod-one/blob/master/conf/play-framework.conf There’s also support for using ENV_VARS.

play-framework.conf

Download latest play-framework.conf template:

curl -SLO https://raw.githubusercontent.com/debiki/talkyard-prod-one/master/conf/play-framework.conf

Configure Site Owner Email and optionally Outbound Email Server Settings in play-framework.conf. Example:

  ...
- talkyard.becomeOwnerEmailAddress="your-email@your.website.org"
+ talkyard.becomeOwnerEmailAddress="chriseke@ekervhen.xyz"
  ...

Secrets

Two secrets needs to be present for Talkyard to run:

play-secret-key used by the application to sign session cookies (keep this safe and do not store in plaintext or checked into version control).
postgres-db-password for database access.

Generate random input for play-secret-key:

head -c 32 /dev/urandom | base64
VqWhJDQ3EjZRKpU3eL+ctRGwgou2SQN3RUPz4+kNLsg=

Store it as a Kubernetes Secret in talkyard namespace:

kubectl create secret -n talkyard generic talkyard-app-secrets \
--from-literal=play-secret-key='VqWhJDQ3EjZRKpU3eL+ctRGwgou2SQN3RUPz4+kNLsg='

Set and create the database password:

kubectl create secret -n talkyard generic talkyard-rdb-secrets \
--from-literal=postgres-password='changeThis!'

Persistent Storage

Configuring and setting up persistent storage is optional while testing as the application will start up fine anyway. Note that if no persistent storage is configured all content and configuration made within Talkyard will be lost on pod restart. For production the following claims and volumes should be configured:

component	volume name	mount path	access mode
web	user-uploads	/opt/talkyard/uploads	ReadWriteMany
app	user-uploads	/opt/talkyard/uploads	ReadWriteMany
cache	cache-data	/data	ReadWriteOnce
rdb	db-data	/var/lib/postgresql/data	ReadWriteOnce
search	search-data	/usr/share/elasticsearch/data	ReadWriteOnce

Example Database Storage

Here is an example for configuring the database storage. Attributes and parameters may differ depending on available storage classes in the cluster.

In this case I am using Longhorn to setup the persistent volume claim:

Create a persistent volume claim:

cat << EOF > ./rdb-pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: talkyard-rdb-pvc
spec:
  accessModes:
    - ReadWriteOnce
  storageClassName: longhorn
  resources:
    requests:
      storage: 10Gi
EOF

Create a patch file for mounting the volume to rdb pod:

cat << EOF > ./patch-rdb-volume.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: patch-rdb-volume
spec:
  strategy:
    type: Recreate
  template:
    spec:
      containers:
        - name: rdb
          env:
            - name: PGDATA
              value: /var/lib/postgresql/data/pgdata
          volumeMounts:
            - name: db-data
              mountPath: /var/lib/postgresql/data
      volumes:
        - name: db-data
          persistentVolumeClaim:
            claimName: talkyard-rdb-pvc
EOF

Note that I’ve included strategy Recreate to allow the volume to detach, e.g. during upgrade of the image version, and environment variable PGDATA to use sub-folder pgdata to avoid postgres start-up error when data directory is not empty.

Update kustomization.yaml

The directory structure of the workspace should now look like this:

talkyard/
├── kustomization.yaml
├── patch-rdb-volume.yaml
├── play-framework.conf
└── rdb-pvc.yaml

Edit kustomization.yaml to include the configuration, PVC and patches:

apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

namespace: talkyard

configMapGenerator:
  - name: app-play-framework-conf
    files:
      - app-prod-override.conf=play-framework.conf

resources:
  - github.com/ChrisEke/talkyard-k8s?ref=v0.2021.02-879ef3fe1
  - rdb-pvc.yaml

patches:
  - path: patch-rdb-volume.yaml
    target:
      name: rdb
      kind: Deployment

I’m using the Kustomize built-in configMapGenerator to create a ConfigMap object of play-framework.conf. This makes it easier to introduce changes to the configuration as the generated ConfigMap will have a hash value included in the name. Which guarantees that the pod will mount the most up to date configuration.

Deploy to Cluster

To trigger the deployment run:

kustomize build . | kubectl apply -f -

If everything went well kubectl get pods -n talkyard should display the pods with status Running:

NAME                      READY   STATUS    RESTARTS   AGE
app-777b8d5689-pbwfp      1/1     Running   0          4m
cache-5d6ddfd55-tg46c     1/1     Running   0          4m
rdb-76d86b7c86-sh287      1/1     Running   0          4m
search-66b6b6fc86-69tnh   1/1     Running   0          4m
web-694745b5fd-wtwq8      1/1     Running   0          4m

Access Talkyard on localhost

By default the included nginx web server has strict configuration on what headers to allow and pass on to back-end services, which is good, as it decreases the attack surface for HTTP header injections.

But it also causes some trouble when port-forwarding web service on an unprivileged port as the port number is stripped from the request URL-header for additional assets.

A temporary workaround is to modify the nginx configuration in the web pod:

kubectl exec -n talkyard web-694745b5fd-wtwq8 -- \
  sed -i 's/proxy_set_header Host \$host/proxy_set_header Host \$http_host/' \
  /etc/nginx/server-locations.conf

kubectl exec -n talkyard web-694745b5fd-wtwq8 -- nginx -s reload

Now port-forward service web:

kubectl port-forward -n talkyard svc/web 8080:80

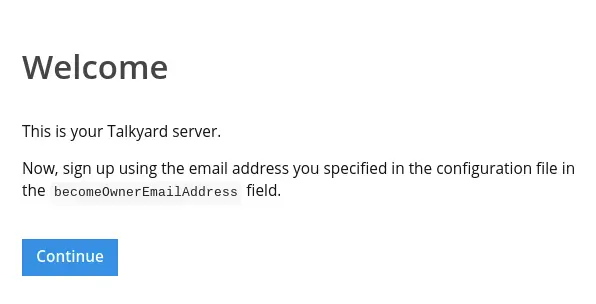

Access http://localhost:8080/ in a browser and the Talkyard Welcome page should appear:

Talkyard welcome page displayed in browser.

Proceed by signing up with the same email used earlier in play-framework.conf: talkyard.becomeOwnerEmailAddress. Continue with initial configuration of community name, creating topics and general layout etc.

When done remember to delete the web pod to reset to default $host headers:

kubectl delete -n talkyard pod web

Configuring Ingress

Now we’re ready to expose Talkyard to the world via an Ingress object. In this example I’m using Traefik to automatically configure TLS certificate with Let’s Encrypt. Configuration of Traefik is beyond the scope of this post, but there are plenty of resources on the subject available online.

The IngressRoute will terminate HTTPS and then forward all traffic to web service via HTTP on port 80.

In file play-framework.conf change the hostname to a proper domain name and enable HTTPS to ensure that generated URI:s from the application will use the correct protocol:

  ...
- talkyard.hostname="localhost"
+ talkyard.hostname="talkyard-example.ekervhen.xyz"

- talkyard.secure=false
+ talkyard.secure=true
  ...

Create the IngressRoute manifest:

cat << "EOF" > ./ingressroute.yaml
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  name: talkyard-ingressroute
spec:
  entryPoints:
    - websecure
  routes:
  - match: Host(`talkyard-example.ekervhen.xyz`)
    kind: Rule
    services:
    - name: web
      port: 80
  tls:
    certResolver: letsencrypt
EOF

Update kustomization.yaml to include ingressroute.yaml as a resource:

apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

namespace: talkyard

configMapGenerator:
  - name: app-play-framework-conf
    files:
      - app-prod-override.conf=play-framework.conf

resources:
  - github.com/ChrisEke/talkyard-k8s?ref=v0.2021.02-879ef3fe1
  - rdb-pvc.yaml
  - ingressroute.yaml

patches:
  - path: patch-rdb-volume.yaml
    target:
      name: rdb
      kind: Deployment

Re-deploy with Kustomize and kubectl:

kustomize build . | kubectl apply -f -

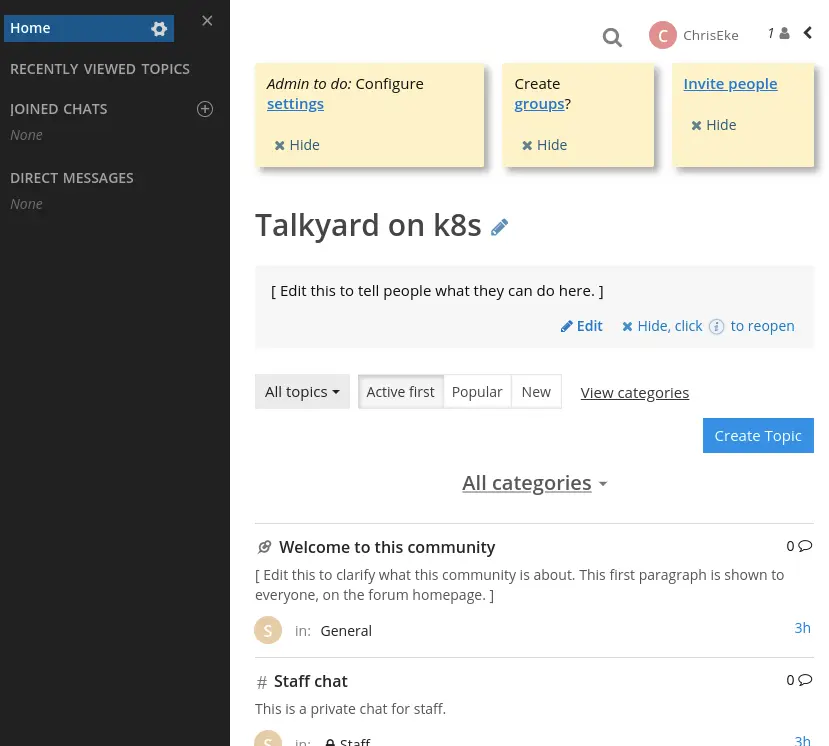

With ingress and a valid certificate provisioned we should now be greeted by the Talkyard index page when accessing https://talkyard-example.ekervhen.xyz:

Talkyard index page displayed in browser.

With Talkyard successfully deployed the fun part of building a community can begin!

I want to highlight that there are most likely some additional tweaks and configuration required before this can be viewed as “production-ready”. Things like High Availability, Scalability and Backup Strategy are definitely worth looking into.

Questions? Suggestions? Errors spotted? Feel free to ~~comment with Talkyard below~~ contact me!
